Rig Design & Manufacturing
State-of-the-Art Rig Design & Build
Advanced drilling and service rig solutions, engineered for performance, safety, and reliability — in the operating environments that matter.
This page is deliberately separate from ICON’s contract drilling services. Rig Design and Manufacturing covers what ICON builds — not what ICON operates — and that distinction matters to the operators, EPCs, and procurement teams evaluating ICON as a rig supplier rather than a drilling contractor.
ICON designs and delivers land rigs from 750HP to 3000HP, in AC or SCR electrical configurations, built to a standardized platform and customized to the client’s well program. Standardization means common components, simpler maintenance, and faster parts turnaround across the fleet — not a different one-off rig every time.
Rig Capabilities at a Glance
ICON delivers modern, efficient drilling and service rigs designed for demanding operating environments worldwide.
Rig Classes
750HP
Service and workover rig, trailer-mounted for fast rig-up.
1000HP
Drilling rig, AC or SCR configuration.
1500HP
Drilling rig, AC or SCR configuration.
2000HP
Drilling rig, AC or SCR configuration.
3000HP
Drilling rig, AC or SCR configuration.
Built to the Program, Not the Catalog
Beyond standard drilling rigs, ICON designs and delivers:
- Fast-moving and walking rig systems
- Desert, arctic, tropical, and conventional configurations
- Custom rigs built around a specific well program
- High-capacity pipe-racking systems
- Integrated drilling-control systems
- Mechanized pipe-handling solutions
Key Systems We Integrate
ICON rig packages are built around proven, purpose-selected systems — not whatever’s cheapest to source that week.
Mechanized Pipe Handling
Reduces manual tong work and crew exposure on the rig floor.

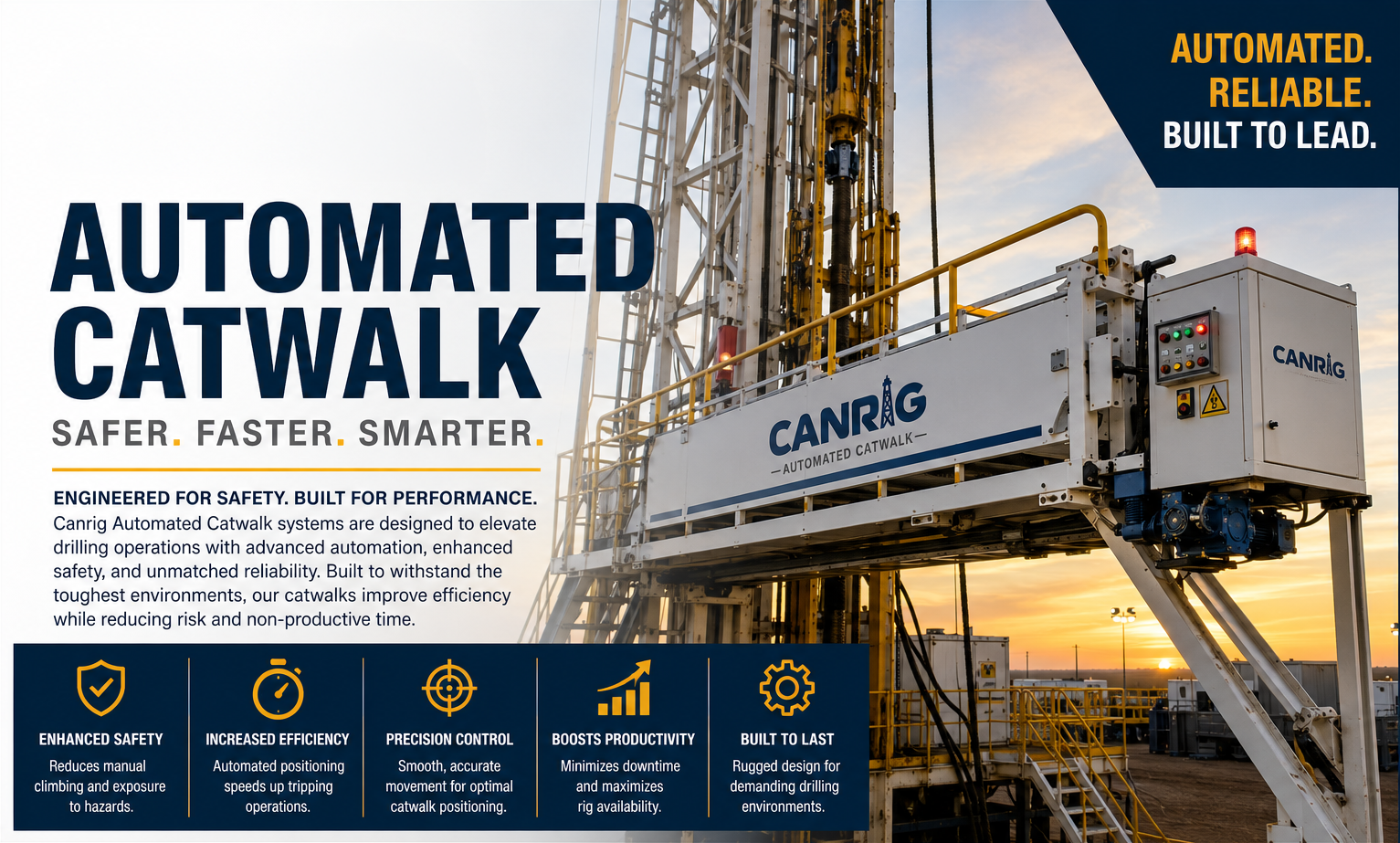

Automated Catwalk
Faster, safer pipe handling from ground to rig floor.

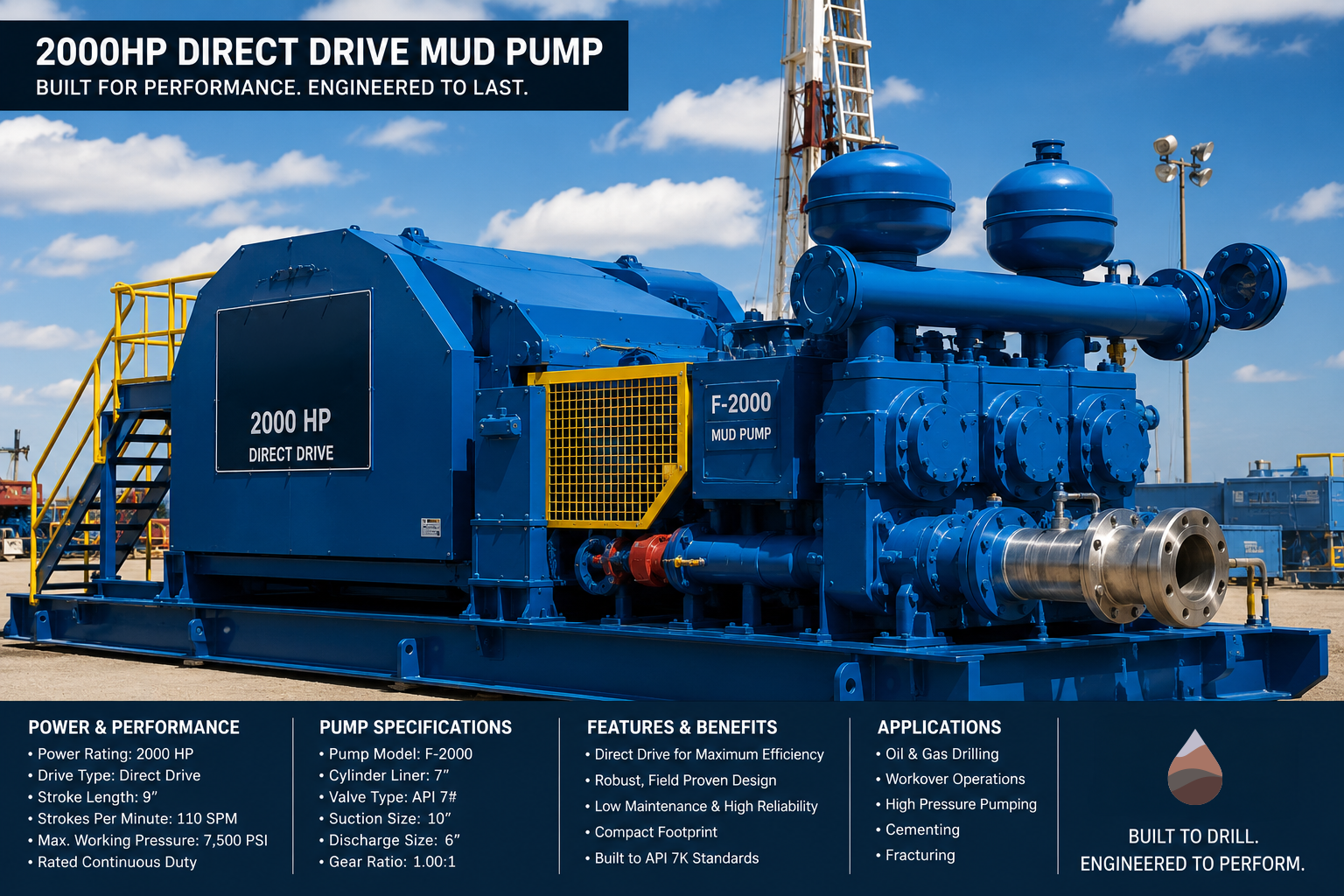

High-Pressure Mud System
Sized to the well program, not oversold or undersized.
From Well Program to Delivery
Client Well-Program Review
Understand the target depth, formation, and operating conditions before anything is designed.
Basis-of-Design Development
Translate the well program into rig requirements.
Equipment Selection
Match components to the job, not the shelf.
Detailed Engineering
Full engineering package before fabrication starts.
Procurement
Sourced against the engineering package, not guesswork.
Fabrication & Assembly
Built to the design, inspected as it’s built.
Quality Inspection
Checked against the plan at every stage, not just at the end.
Factory Acceptance Testing
Proven to work before it ships.
Certification & Documentation
Full documentation package delivered with the rig.
Delivery, Commissioning & Training
On location, running, and the crew trained on it.
Standards
ICON designs and manufactures drilling and service rigs in accordance with internationally recognized industry standards and applicable engineering requirements.
Depending on the rig configuration and equipment supplied, our designs may incorporate applicable requirements from leading API and ISO standards, including:
- API Spec 4F – Drilling and Well Servicing Structures
- API Spec 7K – Drilling and Well Servicing Equipment
- API Spec 8C – Drilling and Production Hoisting Equipment
- API Spec 9A – Wire Rope
- API Spec 7-1 – Rotary Drill Stem Elements
- ISO 10424-2 – Rotary Drilling Equipment, Rotary Shouldered Connections
- API RP 4G – Operation, Inspection, Maintenance, and Repair of Drilling and Well Servicing Structures
Applicable standards are identified during the engineering and basis-of-design process according to the rig configuration, operating environment, equipment package, and client requirements. Compliance, inspection, testing, and certification requirements are documented as part of the rig’s engineering and quality documentation.
Where required, ICON can engineer and document equipment for specific regional, regulatory, and client requirements.
Talk to Our Rig Design Team
From a single service rig to a multi-rig program, ICON’s design and build team will work from your well program, not a catalog.
